Mark Perry
Oct 12, 2019

No Connection or lights when connecting to USB

Hi,


I am attempting to complete Stage 10 Step 7. When I connect the control board to the computer USB port, I don't get any lights and the port doesn't show up in Arduino. I have tried 2 different computers, I have also tried connecting directly with the blue cable into the control board, rather than through the extension cable. With the same result.

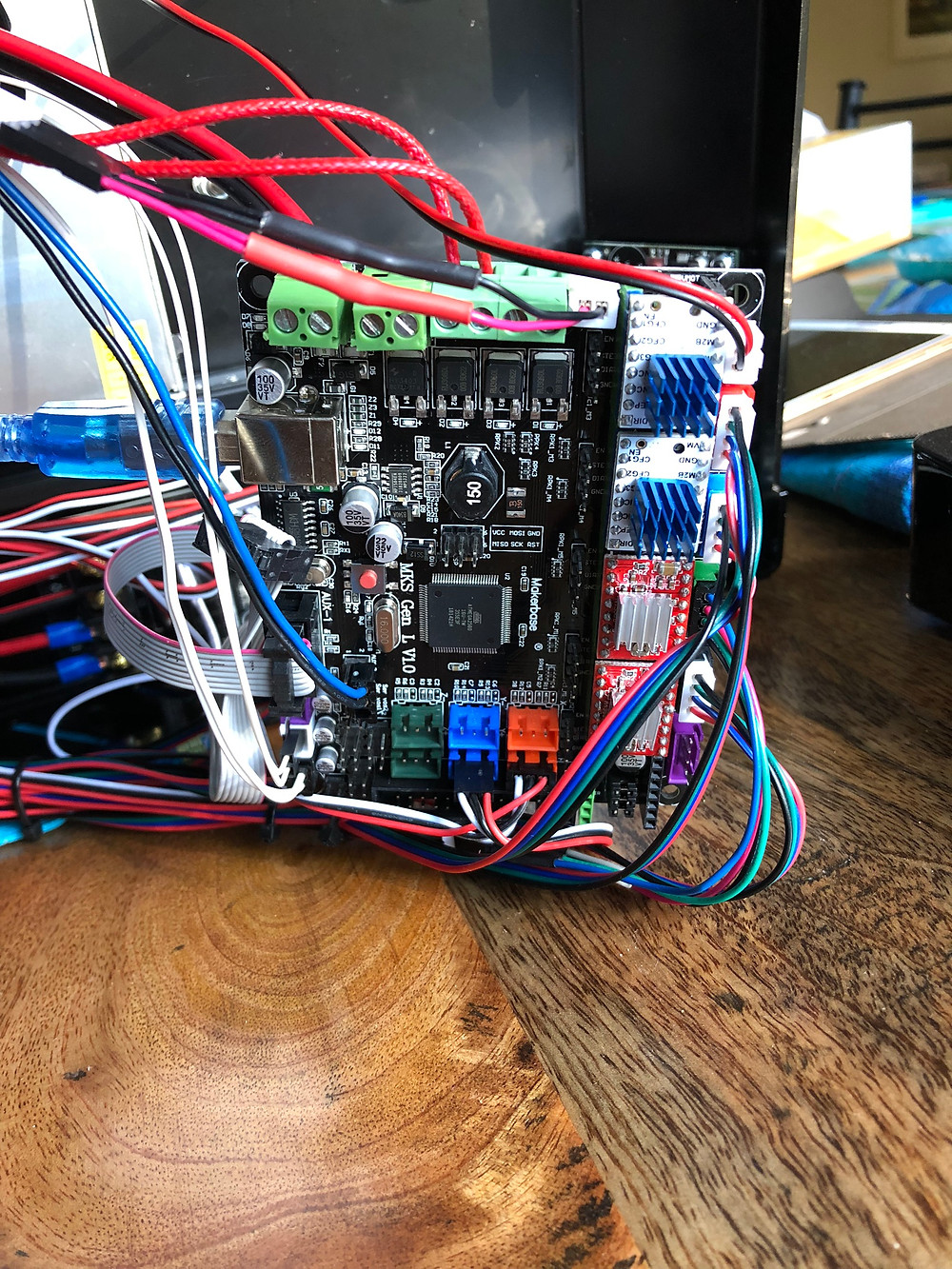

No lights showing.

Directly connected and no lights.


If anyone has any ideas I would appreciate trying them.

1 comment0 replies
Makertech
Jan 15

Remove the endstops from the board and attempt to reconnect, as there may be a short happening there. If your still unable to get any power, then disconnect everything and see if the board connects on it's own, if not then you will need a replacement board. Please contact us at info@makertech3d.com for more info.

0
