PROFORGE 2

Featuring:

  • Touch Screen Display / SD Card Reader

  • Automatic Bed Levelling

  • Filament Sensor

  • Aluminium and Steel Construction

  • Openbuild Mechanics

  • 24V Power

  • All Metal HotEnd

Build Volume: 200x300x300mm

Print Speeds: Up To 100mm/s

Temperatures: Up To 280 °C

Power Supply: 24V 380W Dedicated PSU

TOUCH CONTROL

2.4" Touch Screen Display with SD Card Reader

Run prints from the included SD card, preheat the bed and extruders and tweak settings like temperature and speed - mid-print!

PRECISE MOTION

Auto Mesh Bed Levelling

&

Custom Print Surface

The inductive sensor will probe 9 points on the bed and create a virtual plane for the hotend to follow.

In combination with our custom print surface and the 4 springs the bed sits on you will have the perfect first layer, every time.

PRINT SMART

Steel Feeder Gear

A precise, reliable and hard wearing filament drive gear designed to tightly grip filament and withstand 1000's of hours of printing.

Injection Moulded Extruder

Compact, easy-to-assemble and carefully designed extruder reliably guides fillament into the HotEnd. The tight transition zone from the drive gear makes it possible to also print even the most difficult flexible filaments.

Filament Sensor

Never lose a print, in the event that you run out of filament mid print, the Proforge 2 will pause, allowing you to refill and continue printing.

STEEL &

ALUMINIUM

Sturdy Construction with the Openbuilds Motion System.

Precision Delrin Wheels With Eccentric Nuts

Hard wearing delrin wheels, each containing two bearings and a precision shim. The Eccentric Nut allows you to adjust the tightness at which the wheels grip the extrusions for stable and secure motion.

Aluminium Extrusions

The 20x20 aluminium extrusions give the Proforge 2 an incredibly rigid frame. Their versatile design makes it easy to upgrade and modify your printer later down the line.

Anti-Backlash Nut

Anti-backlash nuts are a must for any modern 3D Printer, we opted for the Openbuilds implimentation. It easily attaches onto the frame and provides adjustable tension to the Z-Axis Lead Screw.

PRINT BIG

200x300x300mm Build Volume

ALL METAL HOTEND

50mm Print Cooling Fan

A must have for any modern 3D Printer, the cooling fan ensures the best quality possible by cooling the molten filament as soon as it leaves the Hotend.

Snap on Fan Shroud

The Fan shroud directs air flow directly to the tip of the nozzle. It is the only 3D Printed part on the Proofrge 2 & 2S.

All Metal HotEnd

An all metal hotend based on the E3D V6, capable of temperatures of up to 280°C.

EASY MAINTENANCE

The HotEnd is mounted onto an aluminium bracket and clamped down with two bolts, making it easy to remove in case a nozzle needs changing.

UNDER THE HOOD

    Makerbase Electronics

The all in one, opensource, light weight MKS Gen_L control board.

    Makerbase Electronics

2.4" Touch Screen Display with SD Card Reader.

Electronics Fan

A 40mm fan constantly cools the electronics.

24V Power Supply

Reliable, QC checked, 24v power supply for quick heat up times

Support Strut

Vibration Dampening Feet

Injection moulded silicone rubber

IEC Power Port

Prewired and insulated switch with fuse

TMC2100

Silent Stepper Drivers on the X & Y Axis

2nd Z-Axis Motor

Smooth and Stable Z-Axis Motion

External MOSFET

Reliable control of the heated bed and higher current.

PROFORGE 2S

Stepper Expansion Board

Mounting holes for an after-market stepper motor expansion board. (not included)

Raspberry Pi Zero W

Connect to WiFi and monitor printer via WebCam

OCTOPRINT

X-Axis Motor

USB Port

Primary Z-Axis Motor



PROFORGE 2S

On top of all the standard features of the Proforge 2, the 2S includes:

  • Heated Bed with High Power External MOSFET

  • Silent TMC2100 Stepper Drivers

  • Dual Z-Axis Motors with Anti-Backlash Nuts

  • Silicone Hotend Cover

  • Steel Nozzle

DUAL Z-AXIS MOTORS

Dual Z-Axis motors privide a stiffer frame and better stability allowing for smoother Z-Motion and reduced vibrations during printing.

HEATED BED

The Heated bed is a 24v, 200 x 300mm PCB fibreglass board that heats up the aluminium surface.

Thanks to the 24V 360W power supply it can reach a temperature of 60C in around 3 minutes and 100C in 10 minutes (at room temperature).

EXTERNAL MOSFET

The heated bed is also controlled by a beefy external MOSFET board to handle the extra current and ensure reliable operation for 1000's of hours of printing!

SILENT TRINAMIC TMC2100 MOTOR DRIVERS

The S model replaces the standard A4988 stepper drivers with the powerful and silent Trinamic 2100 Stepper Driversfor the X and Y Axes.

STEEL NOZZLE

The S Model includes a hard wearing Steel Nozzle for better resistance to more abbrasive carbon fibre, woodfil and glow-in-the-dark filaments.

SILICONE HOTEND COVER

Also included is a silicone sock to go over the heaterblock to provide more stable temperature control when the fan is running at full power and to also keep the block clean.

CARBON FIBER

GLOW IN THE DARK

WOODFIL

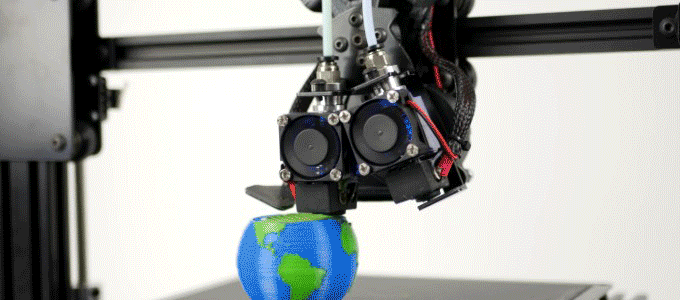

The Quickest, Most Efficient and Compact Dual Extrusion System to EVER be put on an open-source machine at this price point.

Two Hotends are mounted side by side at an angle whith a high torque servo motor to switch between them.

The inactive hotend parks on a silicone surface to prevent contamination and oozing whilst the other hotend is printing.

UPGRADE

DUAL SWITCHING EXTRUDER

The system also removes the need for a priming tower which saves a lot of material that would otherwise go to waste - something that is common in the vast majority of other setups.

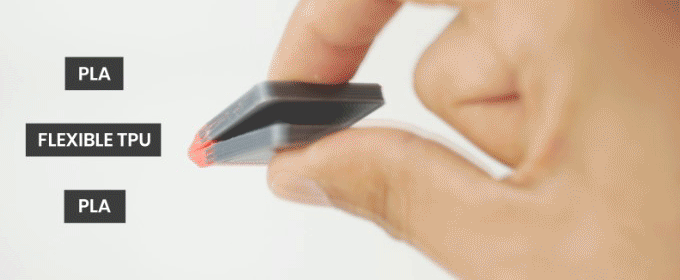

Create dynamic parts like this hinge that was printed with a caombination of flexible TPU and regular PLA filament.

The system also works well with water soluble filaments like PVA allowing you to print complex geometries in effectively mid-air.

DUAL SWITCHING EXTRUDER

FOR NON-PROFORGE 3D PRINTERS

The Dual Switching Extruder system is available to purchase on its own for use on your own 3D printer.

Check the compatibility guide first before ordering!

UPGRADE

OCTOPRINT WiFi & WEBCAM CONTROL INTERFACE

Take complete control of your Proforge 2/2S. Effortlessly start, stop and monitor prints over your WiFi network with the opensource OctoPi Control Centre.

The system runs on the new Raspberry Pi Zero W with the Raspberry Pi camera which is housed and mounted to a swiveling aluminium bracket which in turn can be mounted to either the Bed or Y-Axis Arm.



The Proforge 2/2S connects to the Raspberry Pi which in turn connects and runs through an internet browser on the same WiFi network.

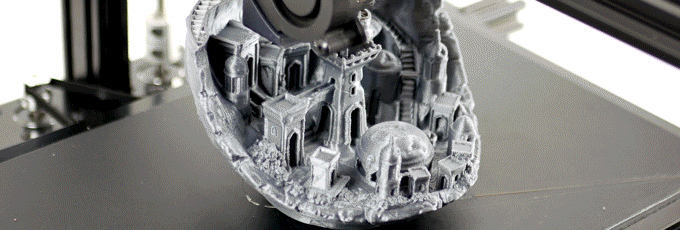

Use the camera to not only monitor the progress of prints but also create stunning time-lapses like this

The OctoPrint Upgrade will include everything you need to get up and running except for the Raspberry Pi Zero W. This is because at the time of writing the product isn't available for bulk buying and is limited to one per customer.

It can be purchased here (bare board version):
